Prisms

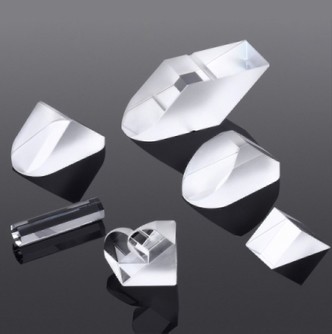

A Prism is a transparent optical element with flat, polished surfaces that refract light. At least two of the flat surfaces must have an angle between them. The exact angles between the surfaces depend on the application. The angle, position, and number of surfaces of a prism help define the type and function. Such as: Wedge prisms, Dove, Penta, Right angle prisms, corner cubes, ect



Specification

Optical   grade

Laser   grade

Material

BK7, FS, UVFS or others

Dimension tolerance

+0.0/-0.2   mm

+0.0/-0.1   mm

Tc  tolerance

± 0.3   mm

± 0.1   mm

Clear aperture

>80%

Surface quality

60-40   S-D

40-20   S-D

Surface flatness

1λ@632,8   nm

1/4   λ   @632.8nm

Deviation

±3 arc min

±1 arc min

Coating

Uncoated,   available upon on request
