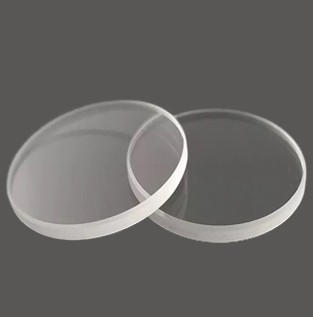

Optical Windows are flat, plane-parallel plates that are often used as protective barriers for electronic sensors or detectors from outside environments. Optical Windows should be selected based on the material transmission or mechanical properties of the substrate. Optical windows do not cause change in the magnification of a system.
Specification | Common precision | High precision |
Material | BK7, B270, Float Glass, FS, UVFS, Ge, CaF2, MgF2, Sapphire or others | |
Dimension tolerance | +0.0/-0.2 mm | +0.0/-0.1 mm |
Tc tolerance | ± 0.3 mm | ± 0.1 mm |
Clear aperture | 85% | 90% |
Surface quality | 60-40 S-D | 20-10 S-D |
Surface flatness | 1/2λ@632,8 nm | 1/8 λ @632.8nm |
Deviation | ±3 arc min | ±1 arc min |
Coating | Uncoated, available upon on request | |
