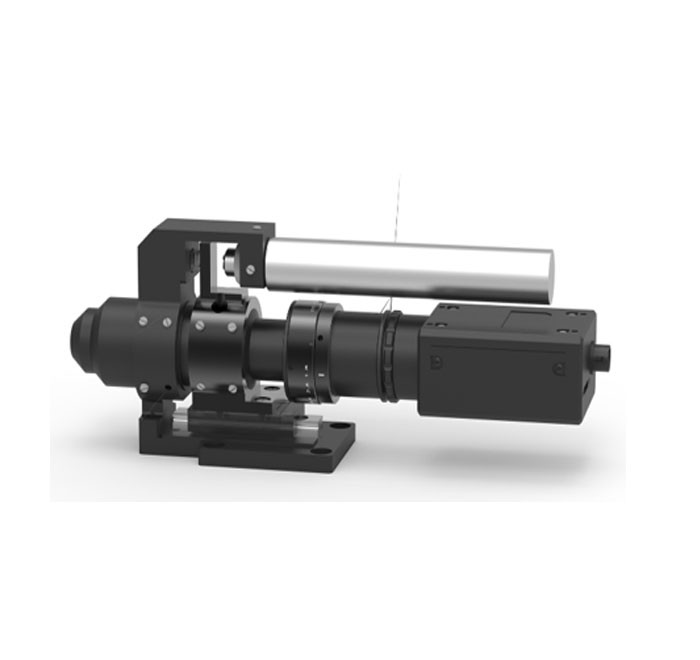

Imitating the human eye

• 140° FOV, providing a wide field of vision, simulating the human eye.

• Switchable aperture from 1-4mm, imitating the different pupil effects of the human eye.

• Motorized focusing allows for measurement at different focal planes

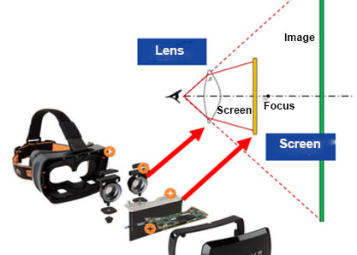

Specifications of AI

• Φ: 35~50mm(The larger the lens size, the less likely the human eye will

notice the lens edges, resulting in a better immersive experience)

• FOV： 85~110°（A larger field of view contributes to a better immersive effect）

• Chromatic Aberration：Smaller is better.

• Distortion: Smaller is better (As the FOV increases, the distortion of the edge images

becomes more noticeable)• Resolution: Stronger is better (Moving slightly away from the

center of the lens significantly reduces image quality, causing the edge images to become blurry).

Combining cameras and software, this design can be used to measure the following specifications:

• Luminance, chromaticity

• FOV

• Distortion

• Chromatic Aberration

• Contrast

• MTF

• Ghosting

• Binocular Integration/ Disparity
