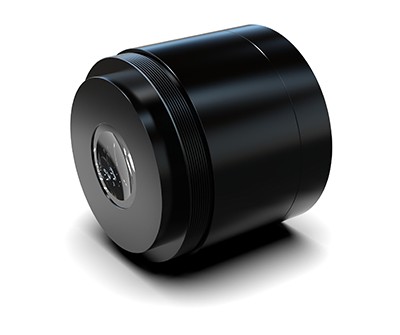

M100_F-theta

Design wavelength   [nm]

355

Effective focal lengt[mm]

100

OMax. entrance   beam[mm]

10.0

Optical scan angle [±°]

14.5

Scan length [mm]

(1 mirror system)

49.5

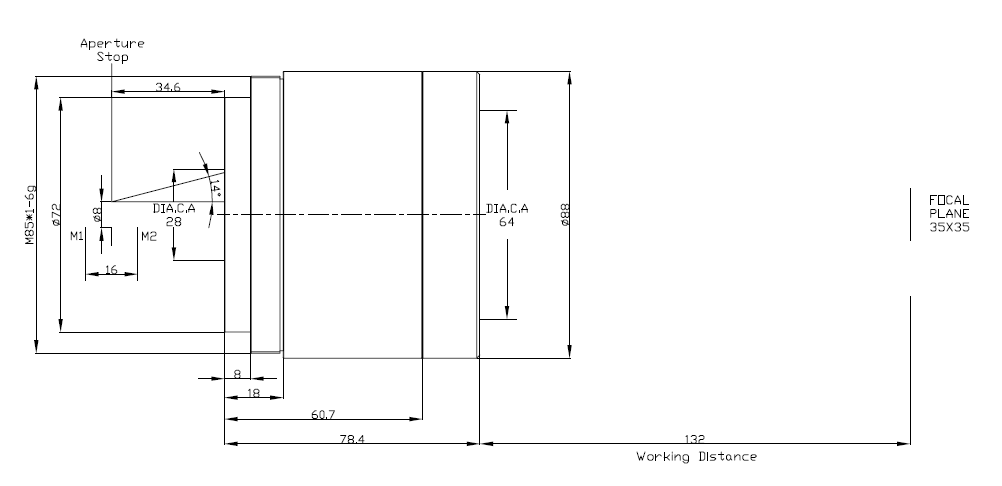

Aperture stop distance [mm]

34.6

Working distance   [mm]

135.0

Scan area for a 2 mirror system with mirror distance from

                lens housing for mirror 2 / mirror 1

35x35

16/38

 Max. telecentricity error [°]

0.5

Total transmission [%]

98

Lens material

fused silica

LIDT (coating)

1.0   J/cm² per 1ns pulse at 50Hz

SP and USP usable   [P/O]

ü
